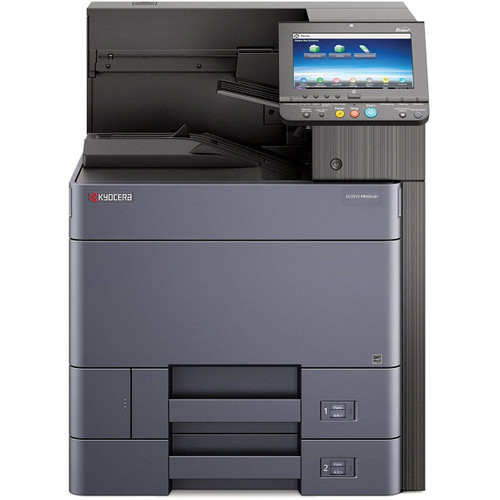

KYOCERA ECOSYS P4060CDN

Kyocera ECOSYS P4060dn: High-Performance A3 monochrome laser printer designed for high-volume printing in various industries

Key Specifications and Features:

• Engine Speed: Up to 60 A4 pages per minute, 30 A3 pages per minute, with a duplex print speed of 60 A4 pages per minute.
• Resolution: 1200 x 1200 dpi, with 2-bit depth for a print quality equivalent to 4800 x 1200 dpi.
• Warm-up Time: Approximately 17 seconds or less.
• Time to First Print: Approximately 3.8 seconds or less.
• Processor: Freescale QorIQ T1024 (Dual Core) 1.2 GHz.
• Memory: 4 GB RAM, 8 GB SSD, and 320 GB HDD.
• Operation Panel: 9-inch full-colour touch panel display.
• Connectivity: 4 x USB 2.0, USB Host 2.0, Gigabit Ethernet (10/100/1000BaseT), and slots for optional print server and SD card.

• Paper Handling:

  • Multi-purpose tray: 150 sheets (A6R–SRA3, 52–300 g/m$^2$).
  • Universal paper cassette: 2 x 500 sheets (A6R–SRA3, 52–300 g/m$^2$).
  • Maximum input capacity with options: 7,150 sheets A4.
  • Duplex printing is standard.
  • Standard output capacity: 500 sheets face-down (max. 4,300 sheets with options).

• Security Features: Encrypted PDF Direct Print, secure printing via SSL, IPsec, SNMPv3, and optional Data Security Kit (E) for SSD/HDD encryption (ISO 15408 EAL2).

• Mobile Printing Support: AirPrint, Mopria, Google Cloud Print compliant, NFC, and optional Direct Wi-Fi.

Toner Yields:

• Black Toner Kit: Microfine black toner for 35,000 pages A4
• Waste Toner Bottle: 70,000 sheets or more

Print Functions:

• Controller Language: PRESCRIBE IIc.
• Emulations: PCL6 (PCL-5e/PCL-XL), KPDL 3 (PostScript 3 compatible), PDF Direct Print, XPS Direct Print, OpenXPS.
• Operating Systems: All current Windows, MAC OS X 10.9+, Unix, Linux.
• Mobile Printing: AirPrint, Mopria, Google Cloud Print compliant, NFC, Direct Wi-Fi (optional), MyPanel, KYOCERA Mobile Print app.
• Security: Encrypted PDF Direct Print, secure printing via SSL, IPsec, SNMPv3, Data Security Kit (E) for SSD/HDD encryption (optional).

Target Industries/Applications:

Given its high speed, large paper capacity options, robust security features, and various finishing options, the ECOSYS P4060dn is well-suited for:

• Large enterprises and corporate offices: For high-volume departmental printing, secure document handling, and complex print jobs.
• Print rooms/centralized print services: Capable of handling diverse print requirements and large batches.
• Legal and financial sectors: Due to the emphasis on document security and audit trails with features like encrypted data and secure printing.
• Educational institutions: For administrative documents and high-volume student material production.
• Any environment requiring reliable, high-speed, and secure monochrome document output.

Options:

The ECOSYS P4060dn offers extensive options for enhanced paper handling and finishing:

• Paper Feeders:

  • 2 x 500 sheets (A6R-SRA3)
  • 2 x 1,500 sheets (A4, B5, letter)
  • 3,000 sheets A4 side deck

• Job Separator: JS-7100 (100-sheet internal)

• Cabinets: CB-7100W (Wooden), CB-7110M (Metal)

• Document Finishers:

  • DF-7110 + AK-7100: Max. 4,000 sheets A4, stapling up to 65 sheets.
  • DF-7120 + AK-7100: 1,000 sheets A4, stapling up to 50 sheets.

• Punch Unit: PH-7C (2-hole/4-hole/Swedish type)

• Mailbox Sorter: MT-730(B) (7 bins)

• Booklet and Tri-folding Unit: BF-730 (for DF-7110)

• Security & Connectivity:

  • Data Security Kit (E)
  • NK-7100(B): Numeric keypad
  • Card Authentication Kit (B) AC: USB IC Card Reader
  • UG-33: ThinPrint support
  • UG-34: Emulation (IBM Proprinter/EPSON LQ-850/Line Printer)
  • IB-35: Direct Wi-Fi Interface
  • IB-50: Gigabit Ethernet
  • IB-51: Wireless LAN (802.11b/g/n)

Industries/Environments:

Given its high print speed, robust paper handling, large toner yield, and security features, the ECOSYS P4060dn is well-suited for industries and environments requiring:

• High-Security Sectors: Industries like legal, finance, and healthcare where protecting sensitive data is critical.
• High-Volume Environments: Large corporate offices and educational institutions that handle heavy daily printing demands.
• Professional Document Production: In-house marketing and print departments that create high-quality collateral like booklets and reports.
