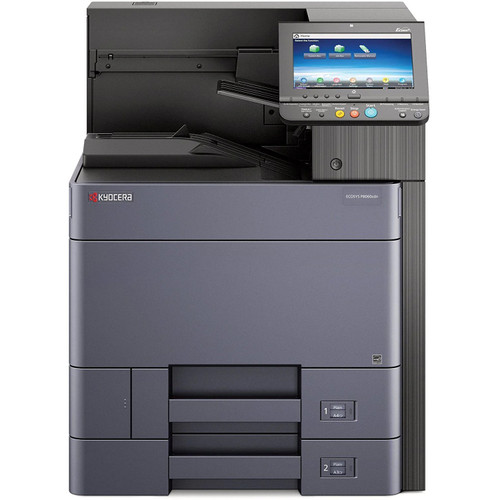

KYOCERA ECOSYS P8060CDN

Kyocera ECOSYS P8060cdn : High-Performance A3 Colour Multifunction Printer

Experience unparalleled efficiency and quality with the Kyocera ECOSYS series. Built on the principles of ECOlogy, ECOnomy, and SYStem-printing, this powerful A3 colour multifunction printer is engineered for durability, minimal maintenance, and a low total cost of ownership. Its long-life components and cartridge-free system ensure that toner is the only consumable you need to worry about, reducing waste and cost for your business.

This device is designed for demanding work environments that require high-volume output, robust security, and professional finishing capabilities.

Key Specifications:

• Technology: KYOCERA ECOSYS, Colour Laser
• Control Panel: 22.8 cm (9 inch) full-color touch panel display, swivel mounted
• Print Speed:
  • Color: Up to 55 ppm (A4), 27 ppm (A3)
  • Black & White: Up to 60 ppm (A4), 30 ppm (A3)

• Resolution: 1,200 x 1,200 dpi (4,800 dpi equivalent x 1,200 dpi with 2-bit depth)

• Warm-up Time: Approx. 17 seconds

• First Page Out Time:

  • B&W: Approx. 3.8 seconds
  • Color: Approx. 5.1 seconds

• CPU: Freescale QorIQ T1024 (Dual Core) 1.2 GHz

• Memory: 4 GB RAM, 8 GB SSD + 320 GB HDD

• Standard Interface: 4x USB 2.0, USB Host 2.0, Fast Ethernet (10/100/1000 BaseT), slots for optional print server and SD card

• Dimensions (W x D x H): 602 x 665 x 790 mm

• Weight: Approx. 89 kg

• Power Consumption:

  • Printing: 960 W
  • Ready mode: 60 W
  • Sleep mode: 1 W

• Noise Level:

  • Printing: 55.4 dB(A) monochrome, 55.5 dB(A) color
  • Ready mode: 19.0 dB(A)

• Safety Standards: TÜV - GS, CE, ISO 9001, ISO 14001, RoHS compatibility.

Toner Yields (Average Continuous, ISO/IEC 19798):

• Black Toner: 30,000 pages A4 (Starter toner: 15,000 pages A4)
• Cyan, Magenta, Yellow Toner: 20,000 pages A4 each (
• Waste Toner Bottle: 40,000 sheets or more (7:3 B&W:Color ratio)

Options and Enhancements:

• Paper Handling:

  • PF-7100 Paper feeder: 2x 500 sheets
  • PF-7110 Paper feeder: 2x 1,500 sheets
  • PF-7120 A4 Side Deck: 3,000 sheets
  • JS-7100 Job Separator: 100-sheet internal

• Finishing (requires AK-7100 Bridge Unit):

  • DF-7110 Document Finisher: Max. 4,000 sheets, stapling up to 65 sheets
  • DF-7120 Document Finisher: 1,000 sheets, stapling up to 50 sheets
  • PH-7C Punch Unit for DF-7120/DF-7110 (2-hole/4-hole)
  • MT-730(B) Mailbox Sorter for DF-7110 (7 bins)
  • BF-730 Booklet and Tri-folding Unit for DF-7110

• Security & Connectivity:

  • Data security kit (E) (ISO 15408 EAL3)
  • USB IC Card Reader (Card Authentication Kit (B)AC)
  • UG-33: ThinPrint support
  • UG-34: Emulation (IBM Proprinter/EPSON LQ-850/Diablo 630)
  • IB-35: Direct Wi-Fi Interface
  • IB-50: Gigabit-Ethernet board
  • IB-51: Wireless LAN Interface

• Accessories:

  • 1290 Cabinet
  • Banner Guide 1

The ECOSYS 8060cdn is a robust and scalable printing solution designed for demanding office environments that prioritize efficiency, cost control, and environmental responsibility, with a wide array of options to customize it for specific workflow needs.

It is particularly well-suited for:

• High-Security Sectors: Industries like legal, finance, and healthcare where protecting sensitive data is critical.
• High-Volume Environments: Large corporate offices and educational institutions that handle heavy daily printing demands.
• Professional Document Production: In-house marketing and print departments that create high-quality collateral like booklets and reports.
